DALI 25-40VDC 28W 700mA ERP0.5W IP20 Constant Current Dimmable Driver

Model NO.
KMD-28-DALI-E1
Delivery:
EXW
Country of Origin:
CHINA
Quantity:
  • Model:KMD-28-DALI-E1
  • Dimming Signal : DALI
  • IEC Standard: IEC62386
  • Size:D75×25mm
  • Dimming Range:0-100%
  • Frequency:50/60Hz
  • Input Voltage:220-240V
  • Output Voltage:25-40V
  • Output Power:28W
  • Output Current:700mA
  • IP:20
  • ERP:0.5W
  • Place of Origin:CN;GUA
  • Warranty(Year):3 years
  • Brand Name:KEYTEC

1

Product Description:
Product Model:KMD-28-DALI-E1
Input Voltage:AC 220-240VSignal Standard:DALI    IEC-62386
Output Voltage :DC 25-40VHousing Material:Plastic
Output Current:700mASize(mm):D75×25
Output Power:28W MaxNet Weight:130g
Work Efficiency:83%(80% load)Vibration Frequency:50 Hz to 60 Hz
PF:0.95Dimming Range:0-100%
IP:20Dimming Effect:Smooth, No flash, No jitter
Operating Temperature:-25°C~50°CCertificate Information:CB,CE,SAA
Protections:Short circuit / Overload /Over TemperatureWarranty:3 years
OEM Service:Yes

ERP:

0.5W

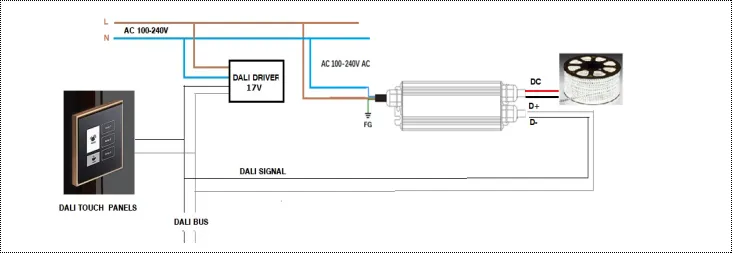

DALI Features

DALI Features.jpg

Product Photo



DALI D75x25.jpg
