Dimming Signal：DALI2 DT8

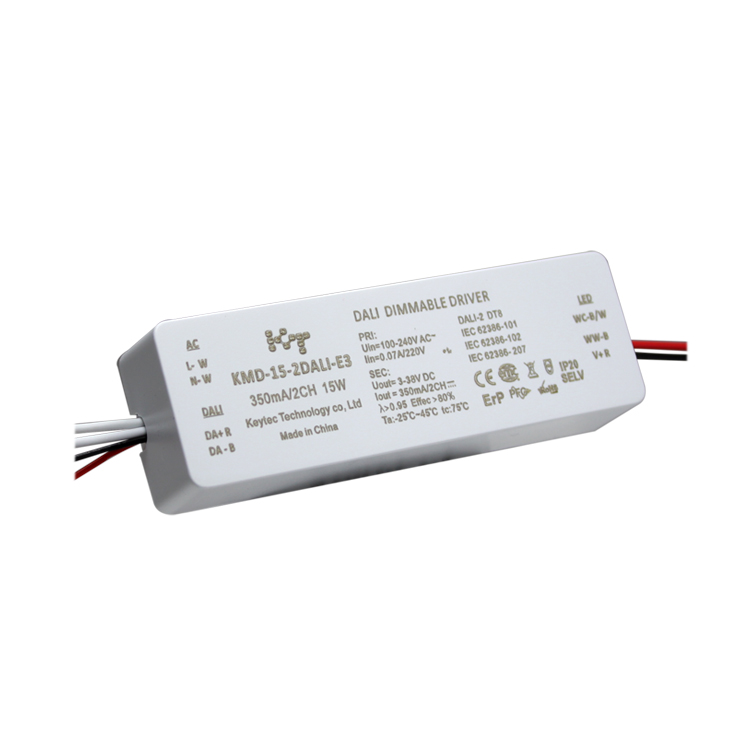

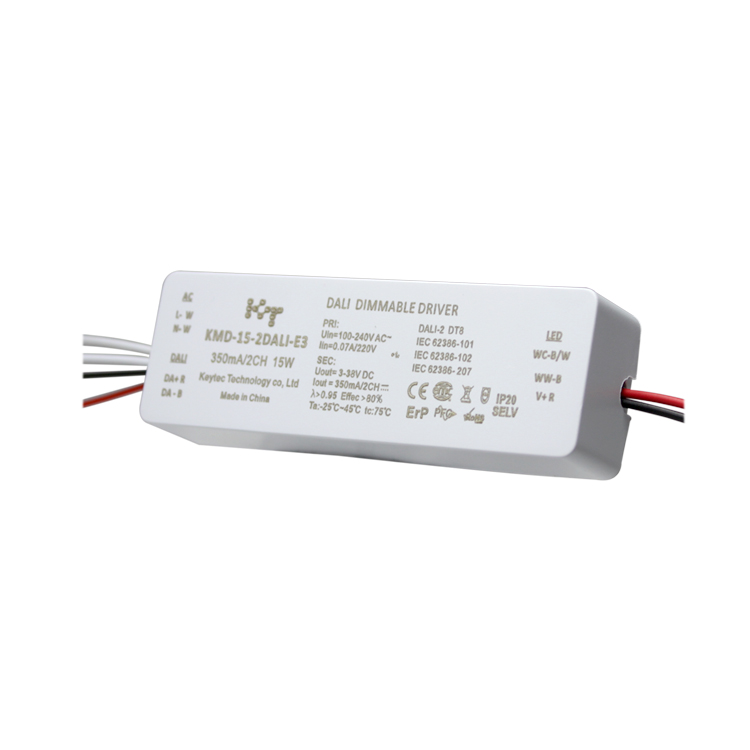

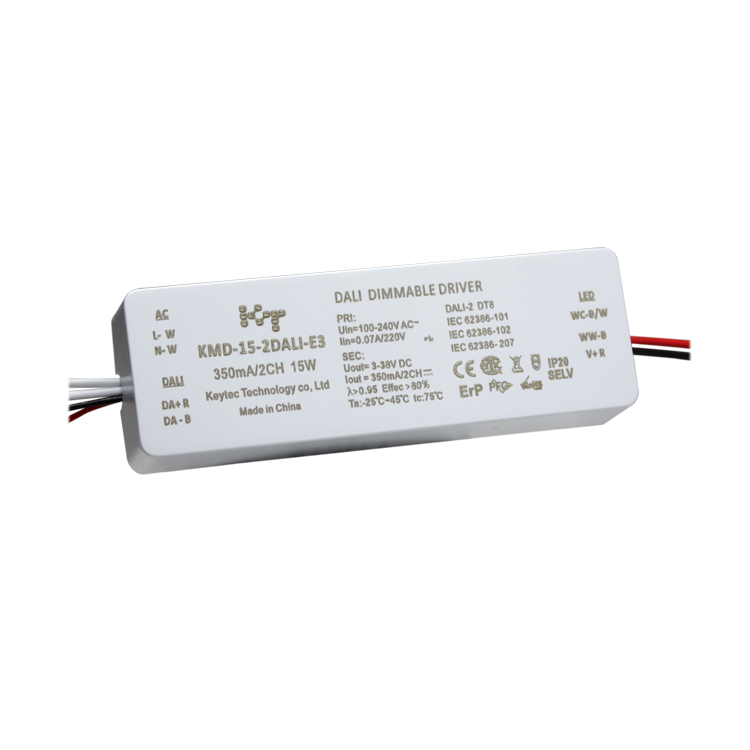

Model：KMD-15-2DALI-E3
U-in：AC100-240V
U-out：DC3-38V
I-out：350mA/2CH
U-Power：Max 15W
Shell Material：PC
Product Weight：70g
Protection level：IP20
Dimensions：100x32x20mm
12VDC 9W 0.75A
24VDC 12W 0.5A
350mA 9W 3-26VDC
12VDC 12W 1A
350mA 12W 3-32VDC
700mA 9W 3-12VDC
700mA 12W 3-18VDC
700mA 25W 25-40VDC
0-10V 350mA15W 3-38V
24VDC 9W 0.37A
0-10V 500mA20W 3-38V
0-10V 650mA25W 3-38V
0-10V 680mA25W 3-38V
680mA 25W 3-38VDC
350mA 15W 3-38VDC
DT6 680mA 25W 3-38V
680mA 25W 3-38VDC
DT6 350mA15W 3-38V
600mA 25W 25-40VDC
DT8 500mA 20W 3-38V
