DALI 12VDC 250W 20.8A ERP0.5W IP66 Constant Voltage Dimmable Signal Driver

Model NO.
SD-DALI KAV-12250-O-P3
Delivery:
EXW
Country of Origin:
CHINA
Quantity:
  • Model:SD-DALI KAV-12250-O-P3
  • Dimming Signal : DALI
  • IEC Standard: IEC62386
  • Size:282*90*45mm
  • Dimming Range:0-100%
  • Frequency:50/60Hz
  • Input Voltage:100-250V
  • Output Voltage:12V
  • Output Power:250W
  • Output Current:20.8A
  • IP:66
  • ERP:0.5W
  • Place of Origin:CN;GUA
  • Warranty(Year):3 years
  • Brand Name:KEYTEC

1

Product Description:
Product Model:SD-DALI KAV-12250-O-P3
Input Voltage:AC 100-250VSignal Standard:DALI    IEC-62386
Output Voltage:DC 12VHousing Material:Aluminum
Output Current:20.8ASize(mm):282×90×45
Output Power:250W MaxNet Weight:2400g
Work Efficiency:86%(80% load)Vibration Frequency:50 Hz to 60 Hz
PF:0.9Dimming Range:0-100%
IP:66Dimming Effect:Smooth, No flash, No jitter
Operating Temperature:-25° C~50 ° CCertificate Information:ERP.SELV,SGS,CE,SAA,RoHS
Protections:Short circuit / Overload / Temperature protectionERP:0.5W
OEM Service:Yes

Warranty:

3 years

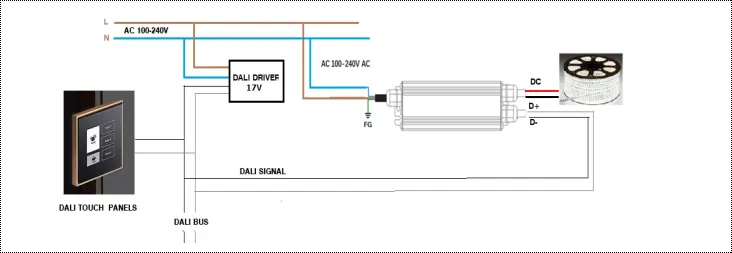

DALI Features

DALI Features.jpg

Product Photo


C.SD-DALI KAV-24250-O-P3.jpgD.SD-DALI KAV-24250-O-P3.jpg
